JSSCD-C-33 Band Saw machine
Description
Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. functions as a full-service industrial equipment partner, integrating R&D, production, and comprehensive sales and technical support. The company's core expertise lies in designing and manufacturing industrial band sawing systems.
Sakoside's band saw machines are designed for efficient cutting of diverse profiles across materials such as metal, plastic, and alloy stock. Their versatility has secured them a vital role within material processing and machinery manufacturing operations.
Notably, Sakoside's flagship technology is the A,B,C series of column band saws. This high-performance range, developed internally, incorporates sophisticated engineering aligned with international standards, specifically optimized for hardened alloy cutting. Its primary benefits encompass:
Enhanced Operational Efficiency: Achieves substantial improvement in cutting speed while significantly lowering power consumption.
Durable Engineering: Incorporates a reinforced drive system coupled with a high-power main motor, delivering outstanding linear cutting force and velocity.
Premium Cutting Performance: Produces surfaces of high precision and superior finish quality, particularly when utilizing specialized cutting fluids and application-specific saw blades.
Long-Term Reliability & Consistency: Ensures stable operation over extended periods. Industrial hard-chrome plating applied to machine columns grants superior resistance to wear, maintains dimensional stability, and substantially extends service life.

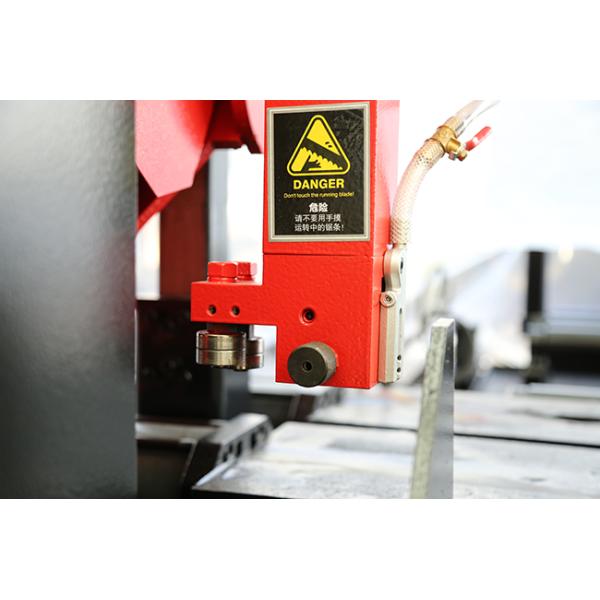

Precision Control System: Utilizes a hydraulic lifting system. Consistent cutting accuracy is maintained via bearing-supported blade guides equipped with adjustable tungsten steel guide plates.
Specification
| Model | Unit | JSSCD-C-33 |
| Machine size | mm | 2150*2100*1500 |
| Square bar&angle bar | mm | 330*330 |
| Bar&round pipe | mm | φ330 |
| Saw band speed | m/min | 23,43,62,75 |
| Saw band size |
| 4115*34*1.1 |
| Main motor power | kw | 4 |
| Hydraulic motor power | kw | 0.75 |
| Cooling motor power | kw | 0.06 |
| Hydraulic fluid capacity | L | 80 |
| Cutting fluid capacity | L | 50 |
| Saw band tension |
| Manual |
| Clamping method |
| Hydraulic |
| Feeding method |
| Hydraulic Feeding |
| Feeding stroke | mm | 500 |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
