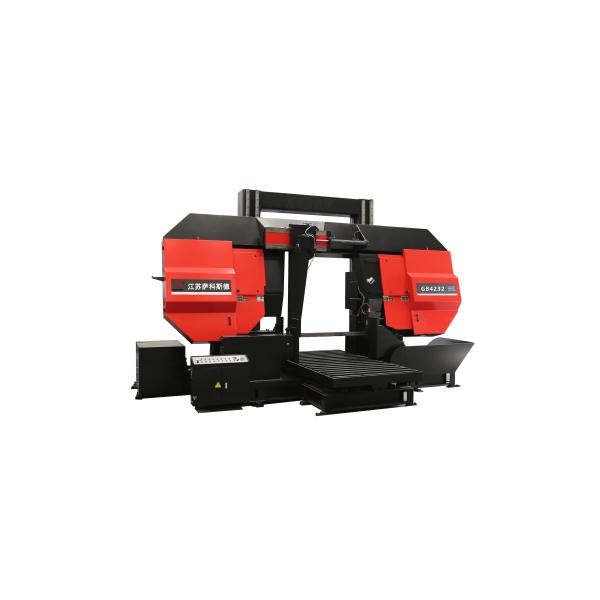

JSSCD-GB4232 Band Saw machine
Description
Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. operates as a full-service industrial solutions provider, delivering comprehensive capabilities in research and development, manufacturing, global distribution, and technical assistance. The company’s primary specialization centers on the engineering and production of industrial band sawing equipment.
These band saws are designed for high-efficiency cutting of diverse profiles across materials such as metals, plastics, and alloys. Their adaptability positions them as essential tools within machining workshops and material processing facilities.
A key innovation is Sakoside’s A, B, and C series column-type band saws. Developed through proprietary R&D efforts, these machines reflect state-of-the-art design compliant with global standards and are particularly suited for processing high-strength alloy materials. Principal advantages encompass:
-
Improved Productivity: Achieves faster cutting rates along with considerably reduced power consumption.
-
Reinforced Structure: Incorporates a rugged drive mechanism powered by a high-torque motor, enabling powerful cutting performance and increased feed speeds.
-
High Precision Output: Ensures tight dimensional accuracy and superior finish quality, especially when paired with specialized cutting fluids and purpose-engineered blades.
-
Long-Term Reliability: Designed for continuous operation under demanding conditions. Machine columns finished with hard chrome plating provide exceptional wear resistance, ensure lasting dimensional integrity, and extend equipment longevity.
-
Accurate Control Systems: Utilizes an integrated hydraulic Workholding and lifting system. Reliable cutting precision is further supported by bearing-guided blade motion and tunable tungsten steel guidance elements.
| Model |
Unit |
GB4232 |
GB4240 |
GB4250 |
GB4265 |
| Machine size |
mm |
1000*2000*1300 |
1000*2400*1300 |
1000*2700*1800 |
1200*3200*2100 |
| Square bar&angle bar |
mm |
400*320 |
400*400 |
600*500 |
650*650 |
| Bar stock |
mm |
φ400 |
φ400 |
φ500 |
φ650 |
| Saw band speed |
m/min |
22,43,64,72 |
22,43,64,72 |
30,50,70 |
25,43,57 |
| Saw band size |
|
4115*34*1.1 |
4700*41*1.3 |
5650*41*1.3 |
6580*54*1.3 |
| Main motor power |
kw |
3 |
4 |
5.5 |
5.5 |
| Hydraulic motor power |
kw |
0.55 |
0.75 |
1.5 |
1.5 |
| Cooling motor power |
kw |
0.04 |
0.06 |
0.06 |
1.2 |
| Hydraulic fluid capacity |
L |
50 |
50 |
50 |
80 |
| Cutting fluid capacity |
L |
30 |
40 |
40 |
50 |
| Saw band tension |
|
Manual |
Manual |
Manual |
Manual |
| Clamping method |
|
Manual-Hydraulic combination |
Manual-Hydraulic combination |
Manual-Hydraulic combination |
Hydraulic |
| Feeding method |
|
Manual |
Manual |
Manual |
Electric drum feeding |
| Feeding stroke |
mm |
|
|
|
600 |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
