JSSCD-GB4250X Band Saw machine
Description
Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. functions as an integrated supplier of industrial equipment, offering end-to-end services that encompass R&D, production, sales, and technical support. The company’s core expertise lies in designing and manufacturing industrial band sawing systems.
Sakoside's band saw machines are built to efficiently process a wide range of cross-sections across metals, plastics, and alloy materials. This versatility makes them highly valuable in machinery manufacturing and material handling operations.
A standout product is Sakoside’s GB-X series column band saws. These machines are the result of in-house research and incorporate advanced designs aligned with international standards, with specialized capabilities for slicing high-strength alloys. Major benefits of these saws include:
Enhanced Efficiency: Delivers higher cutting rates while substantially lowering energy consumption.
Heavy-Duty Build: Equipped with a reinforced transmission system and a high-power main motor, providing strong cutting force and high feed speeds.
Exceptional Accuracy: Produces parts within narrow dimensional tolerances and superior surface quality, particularly when used with specialized coolants and application-specific blades.
Specification
| Model | Unit | GB4028X | GB4232X | GB4240X | GB4250X |
| Machine size | mm | 1000*1800*1200 | 1500*2300*1500 | 1000*1800*1200 | 1500*2300*1500 |
| Square bar&angle bar | mm | 45°160*280 | 45°320*320 | 45°400*400 | 45°500*500 |
| Saw band speed | m/min | 25,35,45,60 | 31,47,60,85 | 22,43,64,72 | 30,50,70 |
| Saw band size |
| 3505*27*0.9 | 4550*34*1.1 | 5360*41*1.3 | 6560*41*1.3 |
| Main motor power | kw | 2.2 | 4 | 4 | 5.5 |
| Hydraulic motor power | kw | 0.55 | 0.75 | 0.75 | 1.5 |
| Cooling motor power | kw | 0.4 | 0.4 | 0.6 | 0.9 |
| Hydraulic fluid capacity | L | 35 | 80 | 50 | 50 |
| Cutting fluid capacity | L | 40 | 50 | 40 | 40 |
| Saw band tension |
| Manual | Manual | Manual | Manual |
| Clamping method |
| Manual | Manual | Hydraulic | Hydraulic |
| Feeding method |
| Manual | Manual | Manual | Electric drum feeding |
Extended Durability: Ensures reliable operation over long periods. Columns treated with hard chrome plating offer outstanding abrasion resistance, help maintain precision, and significantly increase machine service life.

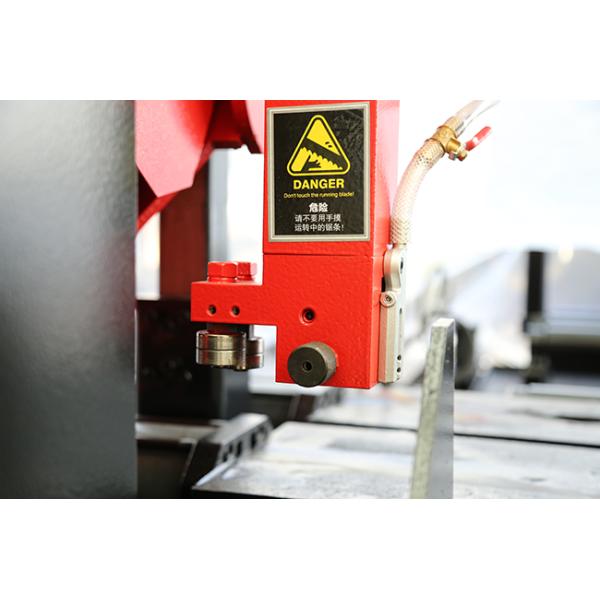

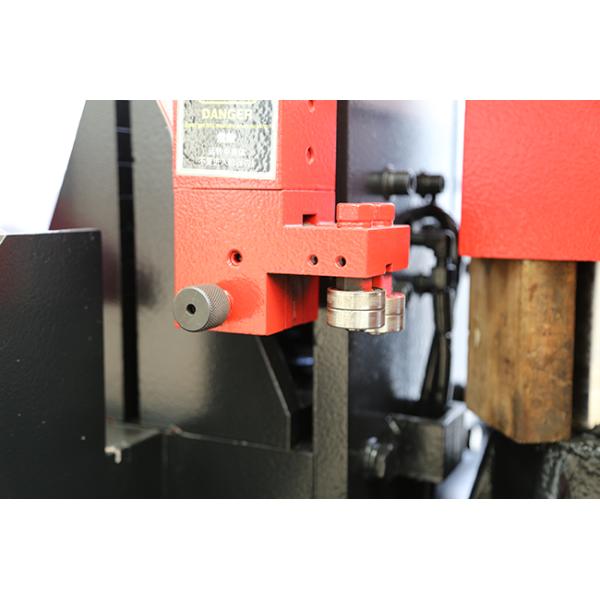

Precision Handling: Features a hydraulic clamping and lifting system. Consistent cutting accuracy is achieved through precision blade guidance with bearing support and adjustable tungsten steel guide blocks.
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
